Product family development sprint

Folded Pause System

A family of transitional furniture objects designed for short pauses in semi-public environments.

Folded Pause System explores how one continuous folded-loop language can adapt to different moments of temporary rest: changing shoes at home, rearranging stools for informal conversation, or pausing briefly in a transit corridor.

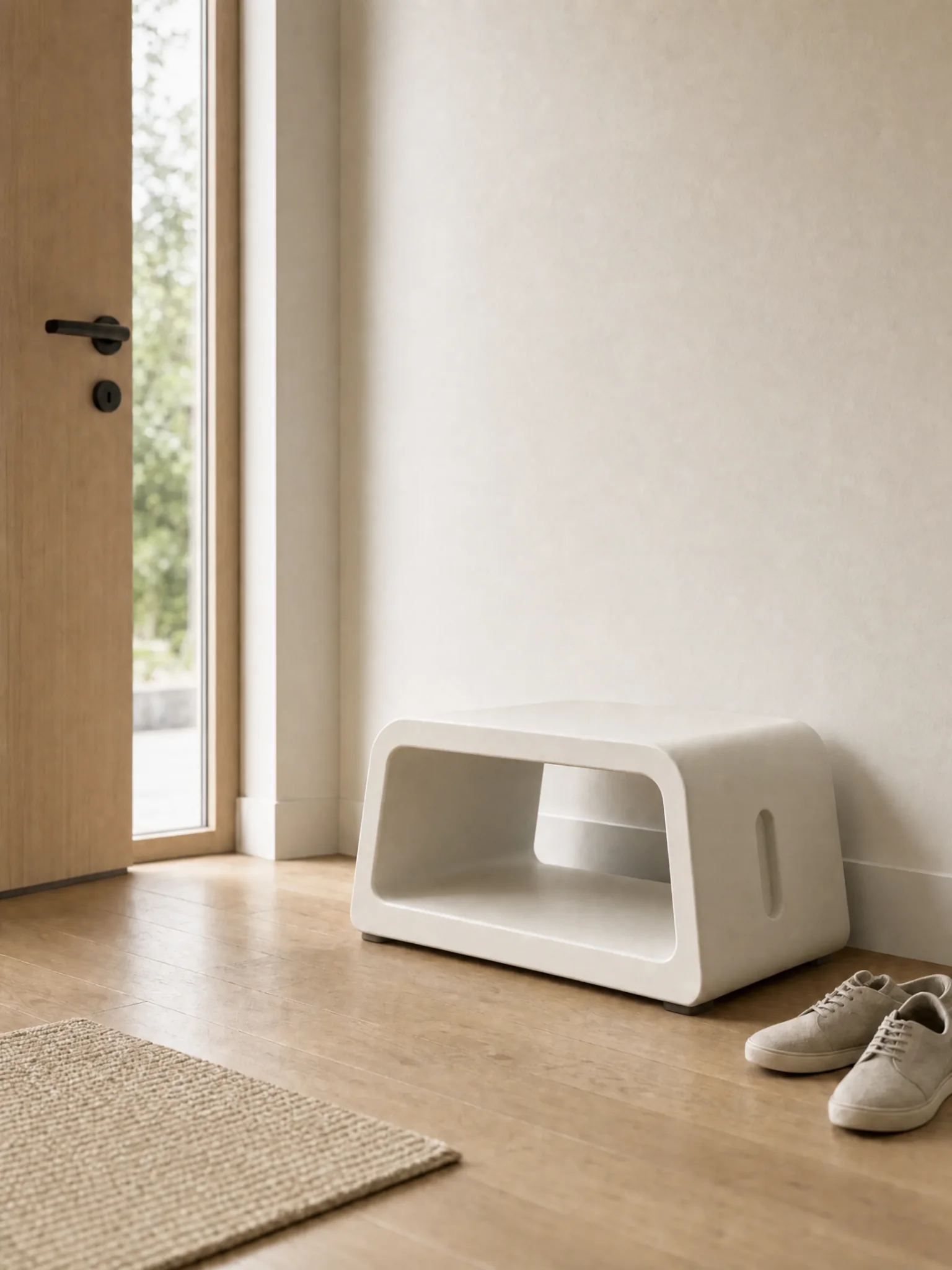

Threshold Chair placed in a calm home entryway as part of Folded Pause System.
Scope

Three related seating typologies developed through one family language

Focus

Short-duration rest, transitional rituals, and low-noise spatial behavior

Methods

Industrial design, CAD development, product family thinking, contextual visualization

Overview

One folded form language, translated across three different pause conditions.

Instead of building three unrelated objects, the sprint tested whether a shared folded profile could become a coherent system. The result is a family defined by rounded edges, continuous loop-like structure, and quiet material presence — each object tuned to a different behavioral context.

The family moves from home to office to public infrastructure. As the context changes, the same core logic shifts in scale, material expression, and degree of permanence while preserving a recognizable visual grammar.

Family members

Three pause objects, three contexts.

01

Threshold Chair

Home entryway pause. A stable perch for changing shoes, setting down a bag, and slowing down at the domestic threshold.

02

Meeting Pause Stool

Flexible workplace seating. A lightweight stool for critiques, workshops, and circular conversation that can be nested away when not in use.

03

Transit Pause Bench

Wall-mounted public rest. A minimal seating line for brief pauses in corridors, metro stations, and other shared waiting spaces.

Development evidence

Three full-scale CAD models, one shared product language.

The family was developed as three separate 3D models rather than as a purely visual styling exercise. The comparative study below documents the overall form envelopes, proportion changes, and structural translation of the folded-loop language across domestic, workplace, and public contexts.

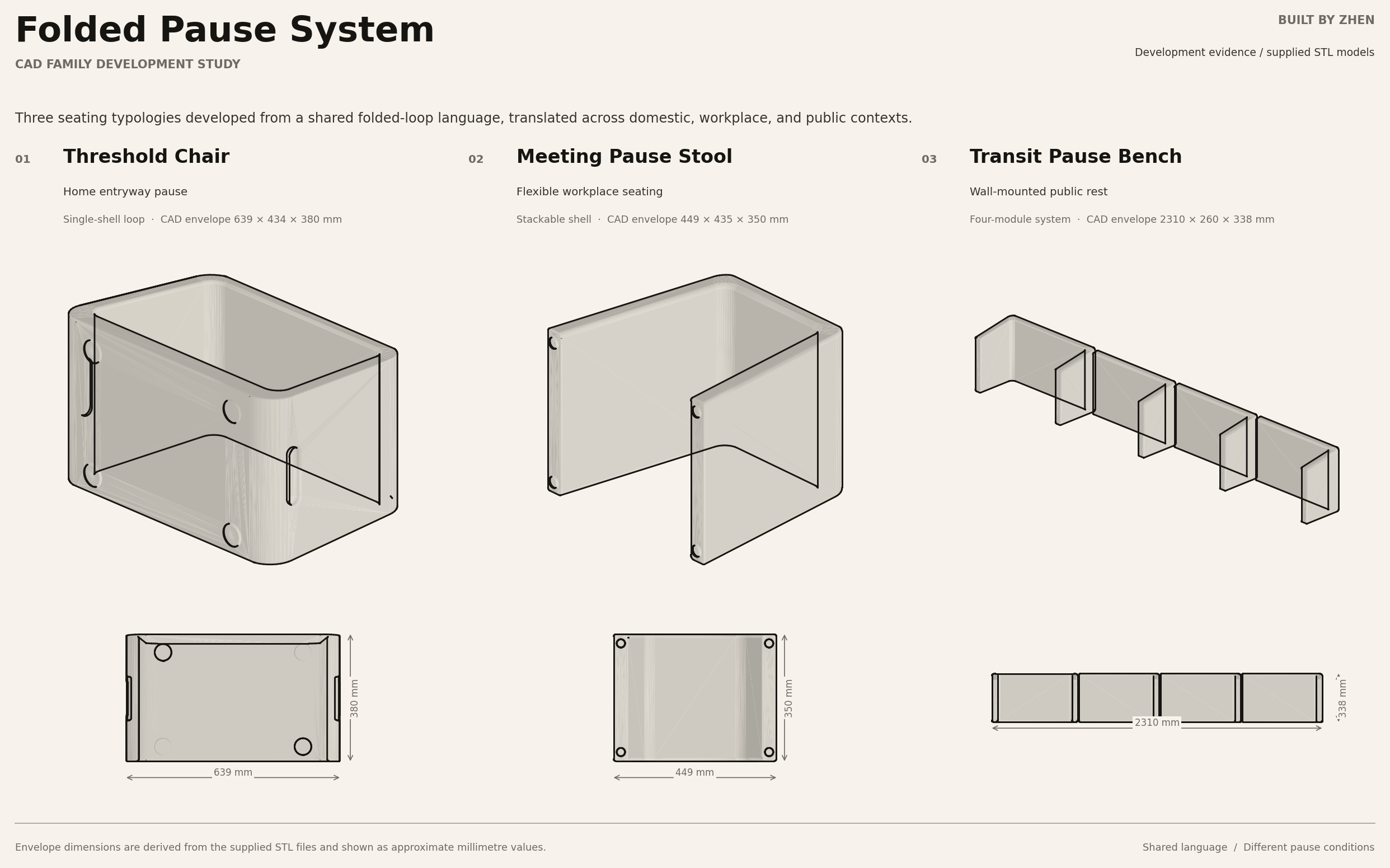

CAD development sheet comparing Threshold Chair, Meeting Pause Stool, and Transit Pause Bench with axonometric and dimensioned elevation views.
Comparative CAD study generated from the project STL geometry. Envelope dimensions are approximate model values. Open the sheet for a full-size view.
01

Threshold Chair

Approx. 639 × 434 × 380 mm. A single closed shell balancing a compact footprint with a clear hollow volume.

02

Meeting Pause Stool

Approx. 449 × 435 × 350 mm. A tapered shell developed for temporary seating and repeated group use.

03

Transit Pause Bench

Approx. 2310 × 260 × 338 mm. A four-module wall-aligned system preserving open floor clearance.

01 — Home entryway pause

Threshold Chair

A compact entryway seat designed for the small pause between outside and home.

Threshold Chair positioned near a home entryway door with shoes nearby.

Home Entryway Pause

Threshold Chair is a compact entryway seat designed for the small pause between outside and home. Its continuous U-shaped body creates a stable perch for changing shoes, setting down a bag, or briefly gathering oneself at the domestic threshold.

The object uses a soft rectangular loop profile with rounded edges, a hollow central opening, and a dark guidance slot near the base. Rather than treating the entryway only as a storage problem, the design frames it as a moment of transition: a quiet place to slow down before entering or leaving.

As part of the Folded Pause System, Threshold Chair establishes the family's core language — a continuous folded loop, calm proportions, and a low-noise material presence adapted to everyday rituals.

Context

Home entryway / apartment threshold

Material direction

Warm white polymer

Design role

Stable shoe-changing perch and entryway pause object

Status

Concept study / CAD-developed design proposal

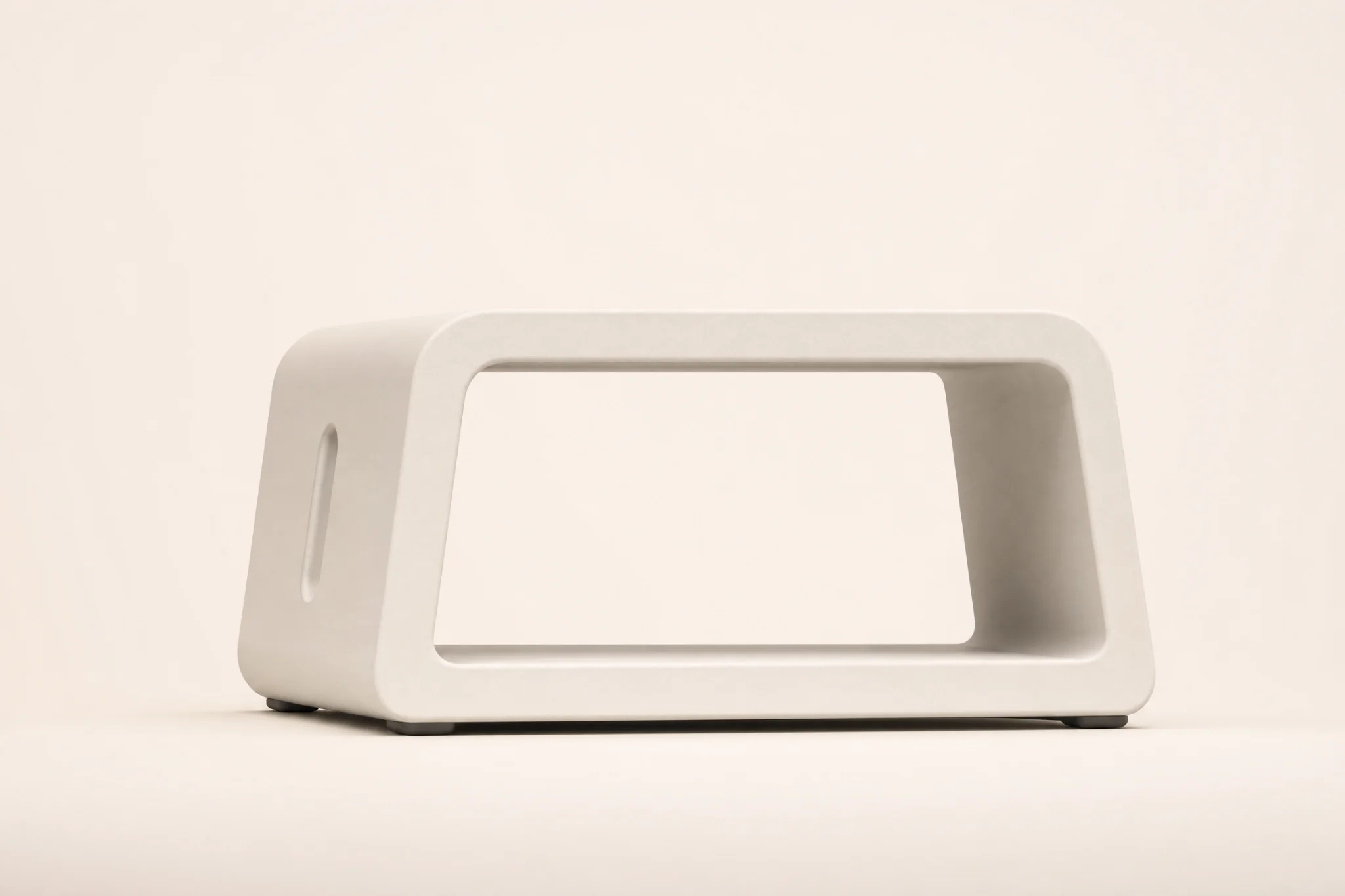

Front studio view of Threshold Chair showing its folded loop profile and hollow opening.
Core folded-loop form in warm white polymer.

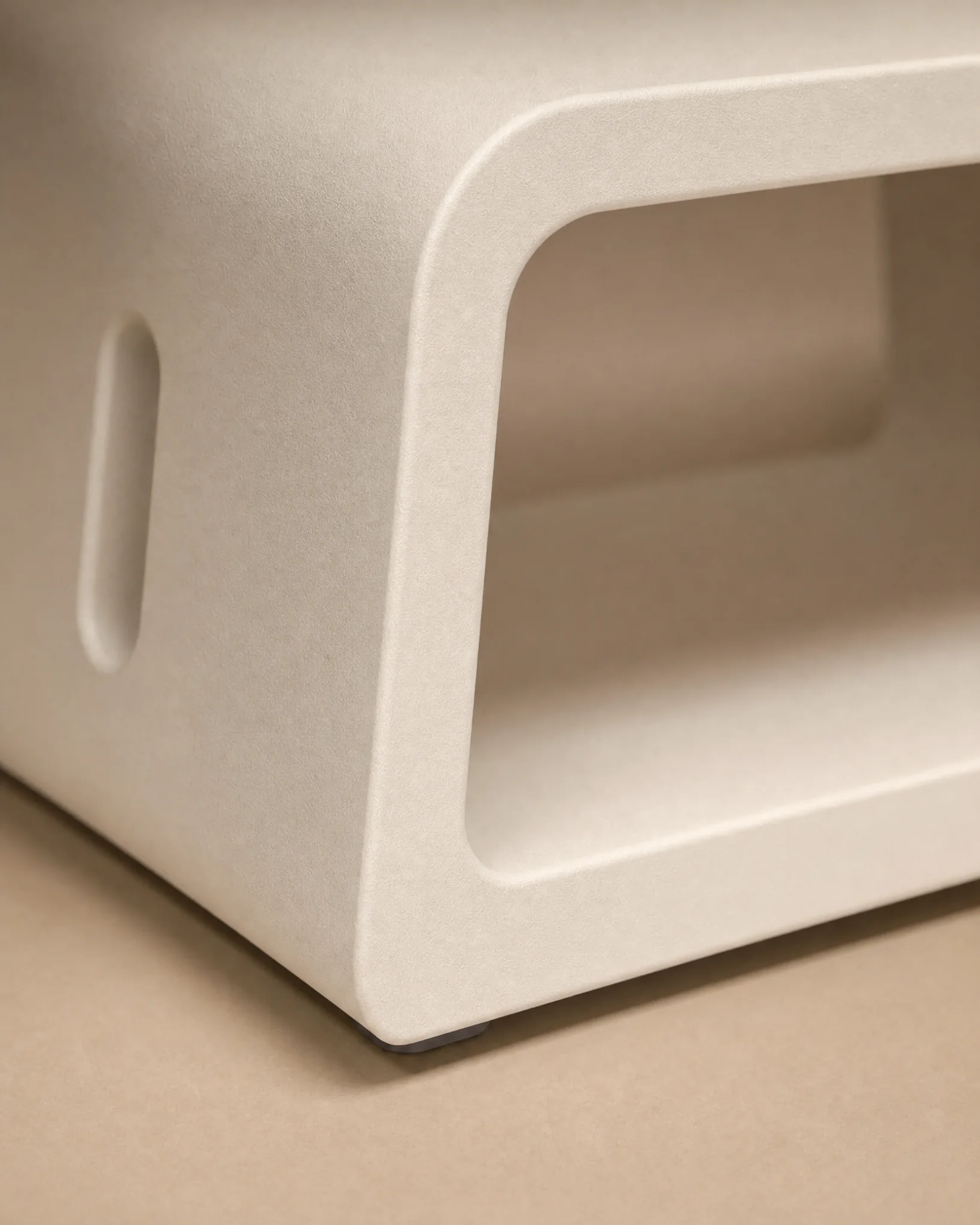

Close detail of Threshold Chair surface, rounded corner, and side guidance slot.
Rounded geometry and low-noise surface presence.

02 — Flexible seating for office and studio conversations

Meeting Pause Stool

A lightweight freestanding stool designed for informal meetings, studio critiques, workshops, and short collaborative sessions.

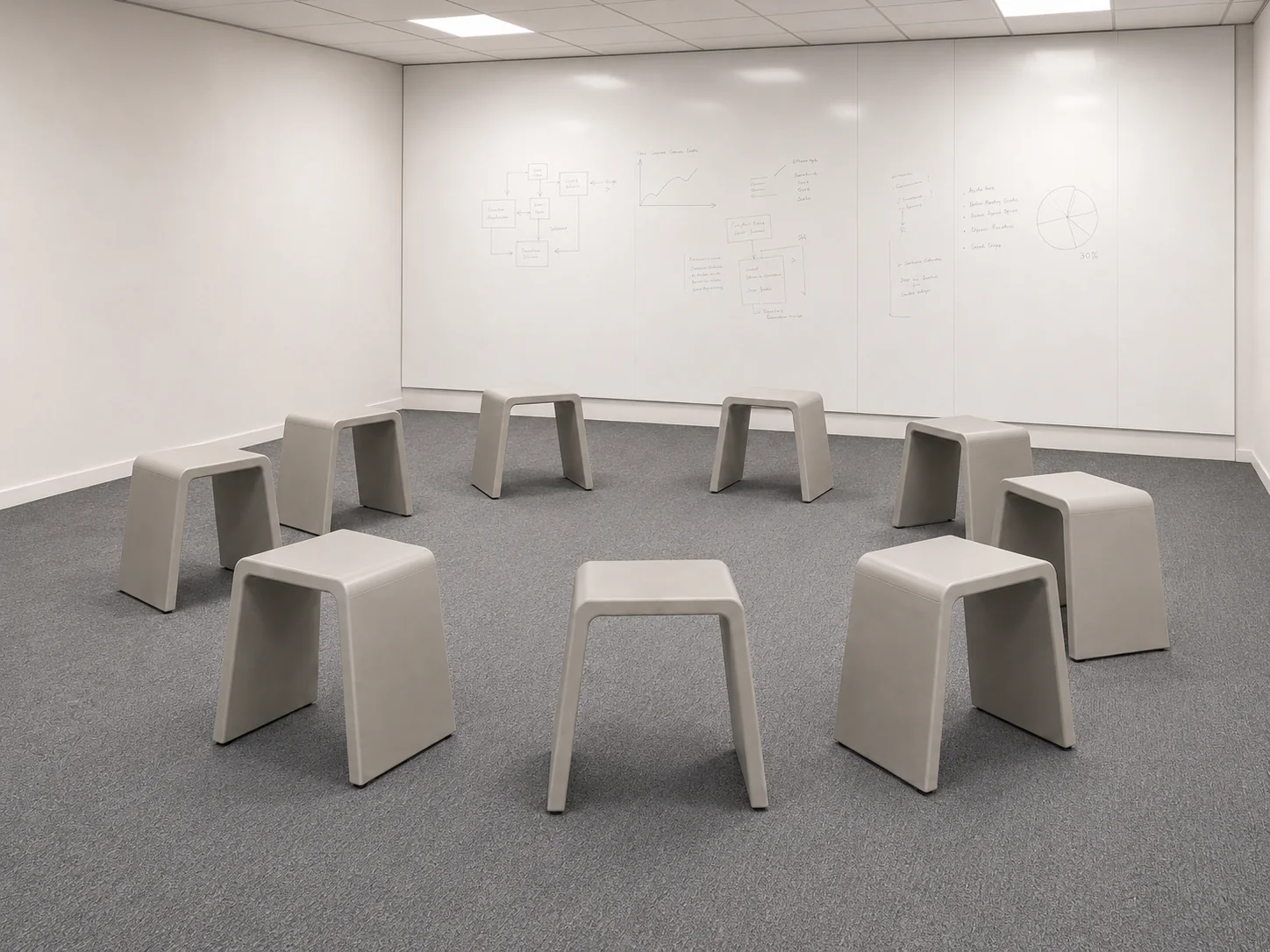

Meeting Pause Stools arranged in a circle in a workshop room.

Flexible Seating for Office and Studio Conversations

Meeting Pause Stool supports a different kind of meeting posture: temporary, flexible, and easy to rearrange. It offers a lower, quieter seating object for moments that do not require a full workstation or task chair.

The stool uses a tapered hollow U-shell form with rounded edges, integrated structural depth, and small dark stack-stops at the base. Multiple stools can be arranged in a circle for discussion, pulled aside for individual use, or nested together against a wall when not in use.

Within the Folded Pause System, Meeting Pause Stool translates the same continuous loop language into a stackable workplace object, emphasizing temporary gathering rather than permanent workstation occupation.

Context

Meeting room / studio / workshop space

Material direction

Light grey glass-filled polymer

Design role

Short-duration seating, circular discussion, stackable storage

Status

Concept study / CAD-developed design proposal

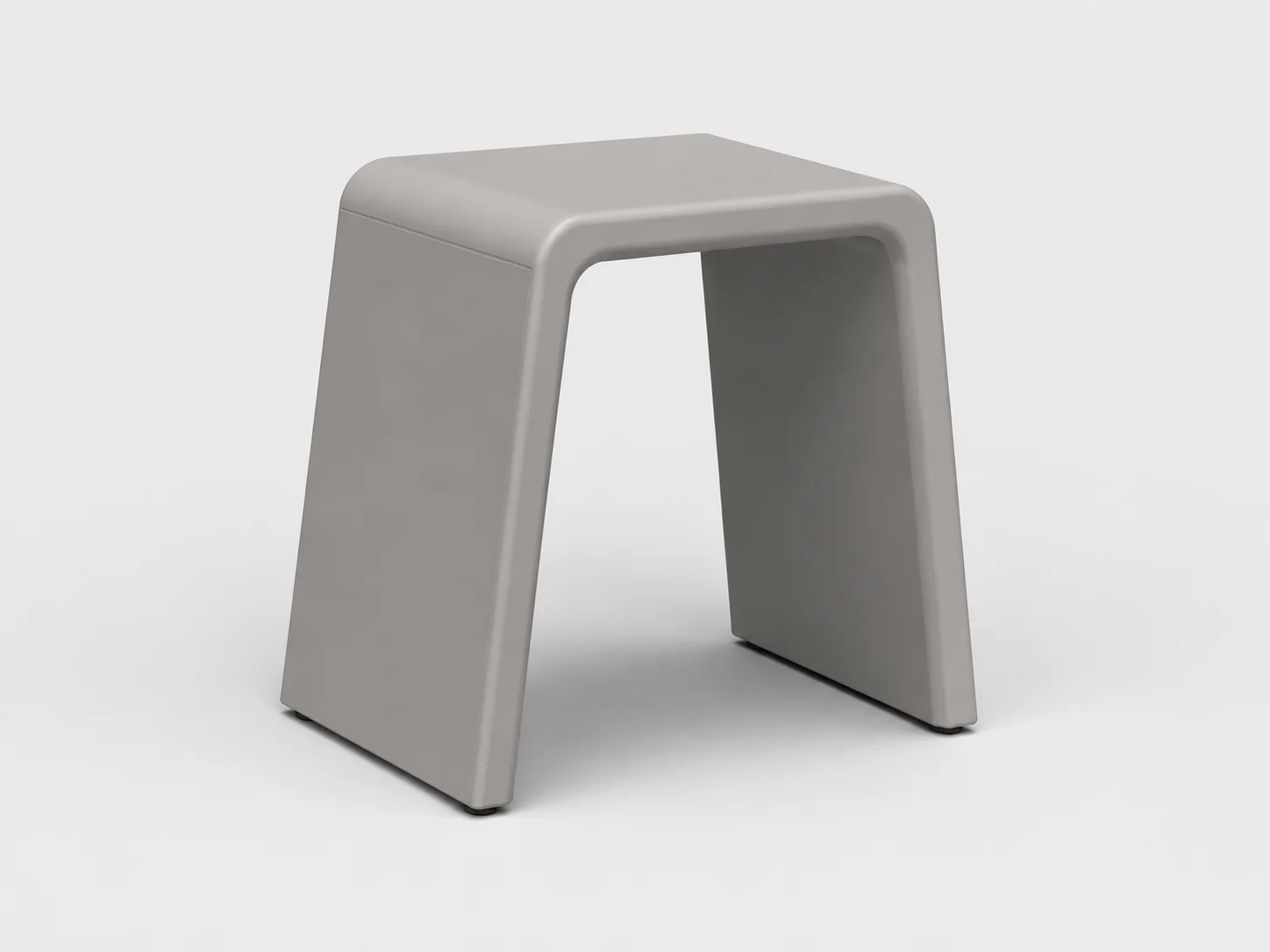

Single Meeting Pause Stool studio render.
Single object silhouette and stable footprint.

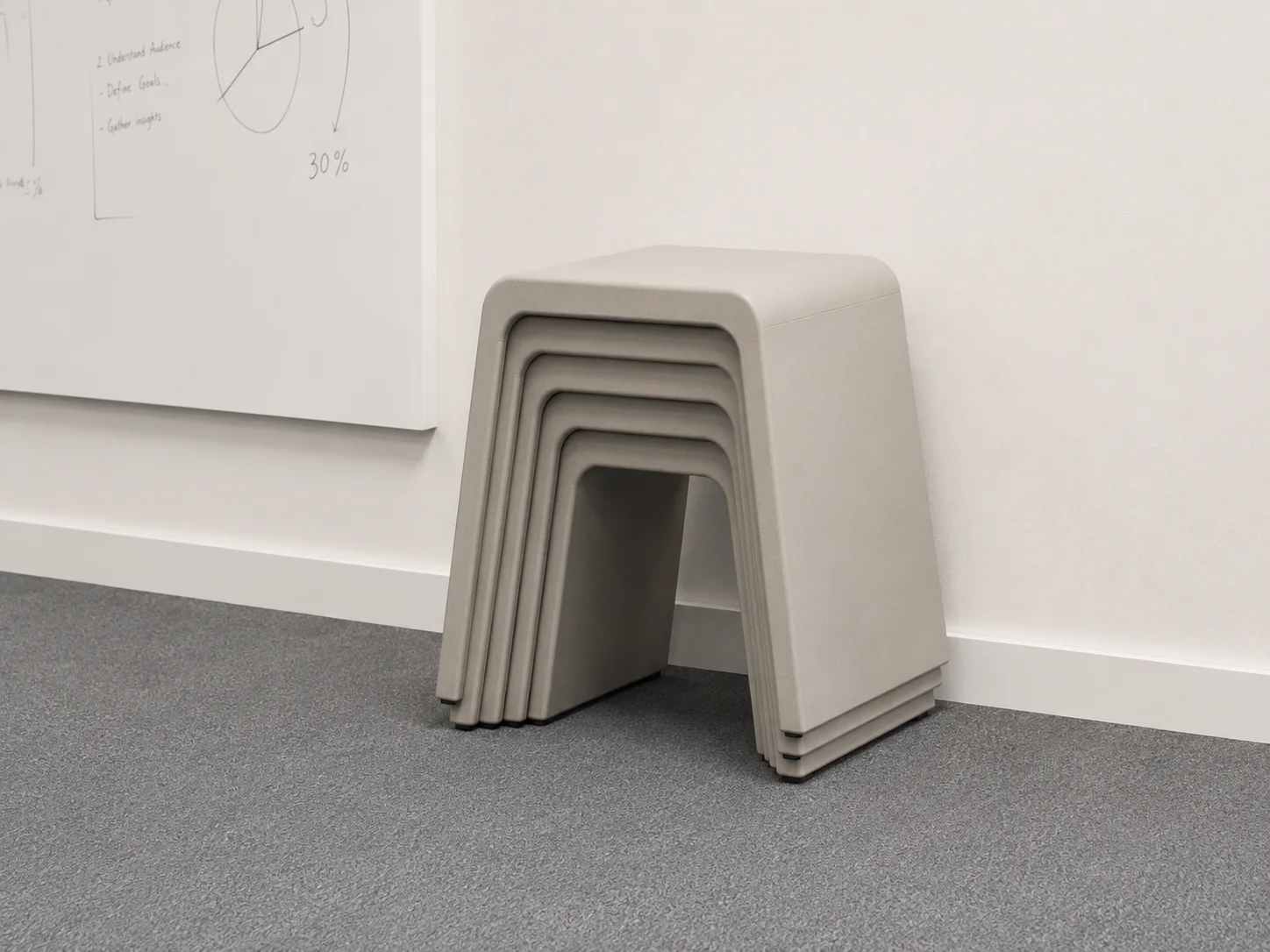

Meeting Pause Stools stacked neatly together against a wall.
Nested storage for quiet, efficient stowage.

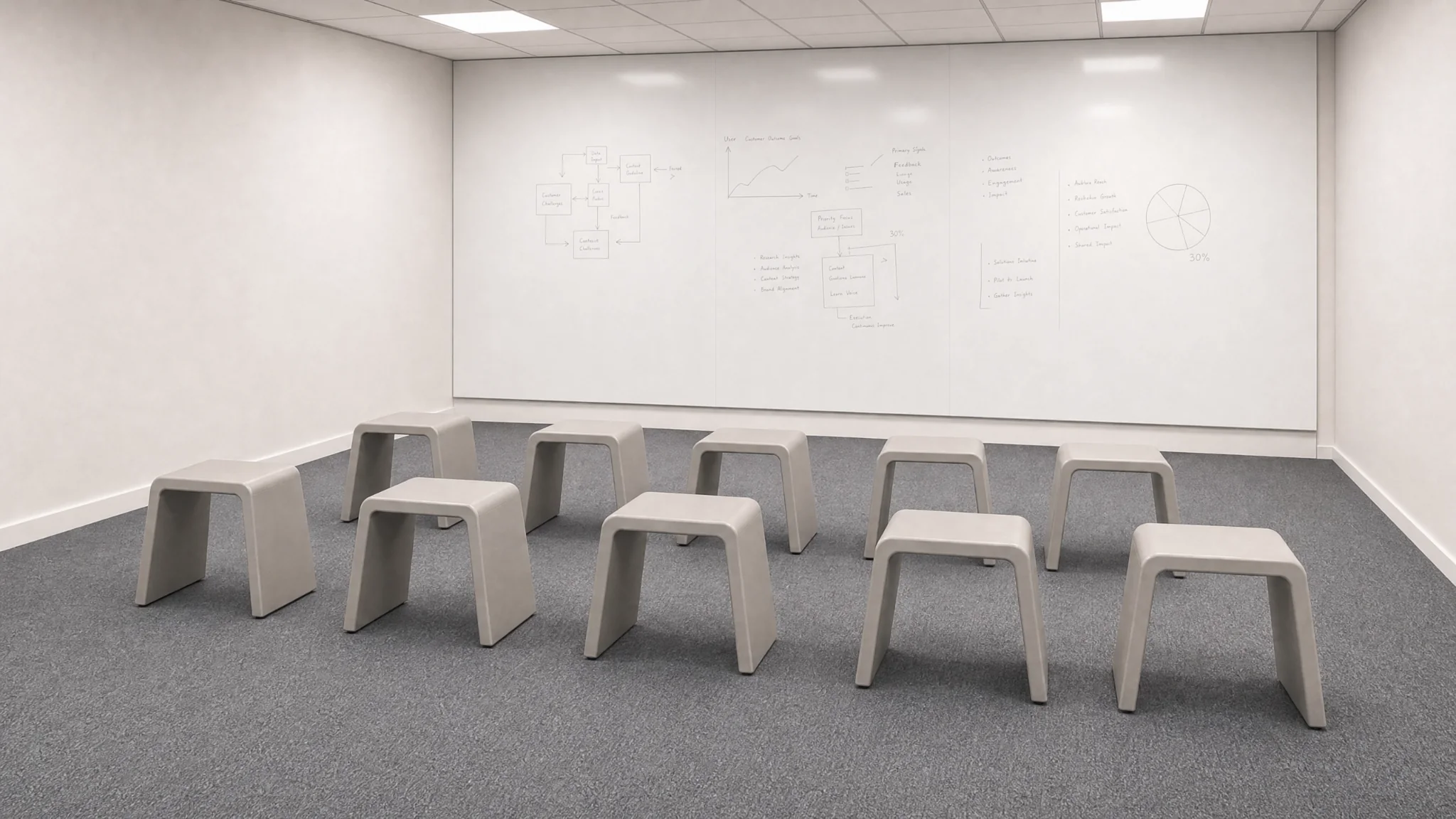

Multiple Meeting Pause Stools distributed through a workshop room.
Supports workshops, critiques, and quick reconfiguration.

03 — Wall-mounted seating for public waiting spaces

Transit Pause Bench

A wall-mounted public seating system designed for brief moments of rest in transit environments.

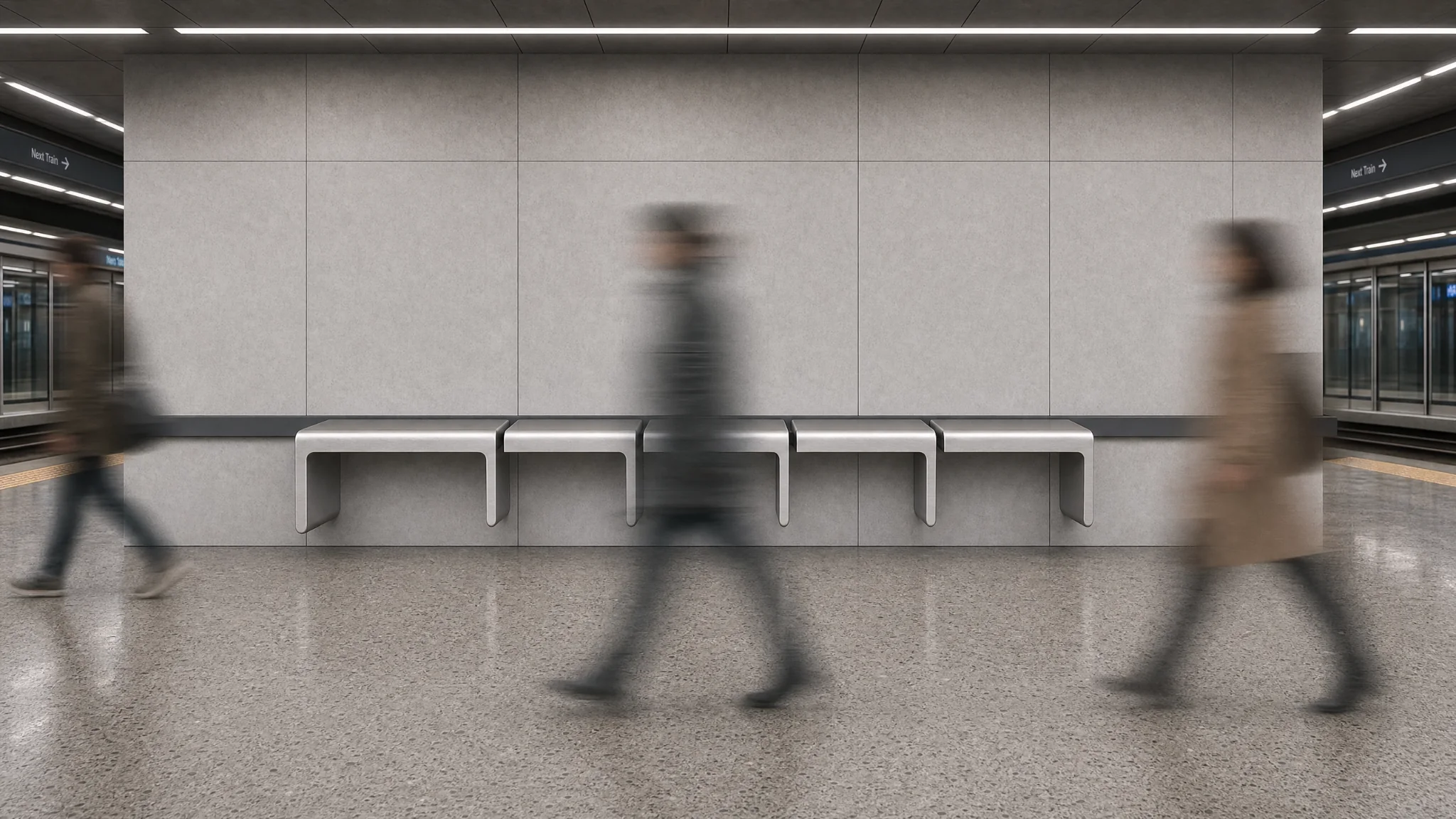

Transit Pause Bench installed along a metro station wall with blurred passersby.

Wall-Mounted Seating for Public Waiting Spaces

Transit Pause Bench provides a minimal place to pause without occupying the floor, keeping circulation and cleaning paths open. It is intended for corridors, metro stations, and public waiting environments where stillness must coexist with movement.

The system combines one U-loop end module with three asymmetric J-fold modules, creating a continuous seating line along the wall. Brushed stainless steel, soft radiused edges, and a dark mounting rail give the object an architectural, durable, and visually quiet presence.

Within the Folded Pause System, the loop-based language becomes thinner, longer, and more infrastructural — shifting from domestic ritual and workplace flexibility toward shared urban stillness.

Context

Metro platform / public corridor / transit waiting area

Material direction

Brushed stainless steel or powder-coated aluminum

Design role

Brief public rest, wall-aligned seating, open-floor maintenance

Status

Concept study / CAD-developed design proposal

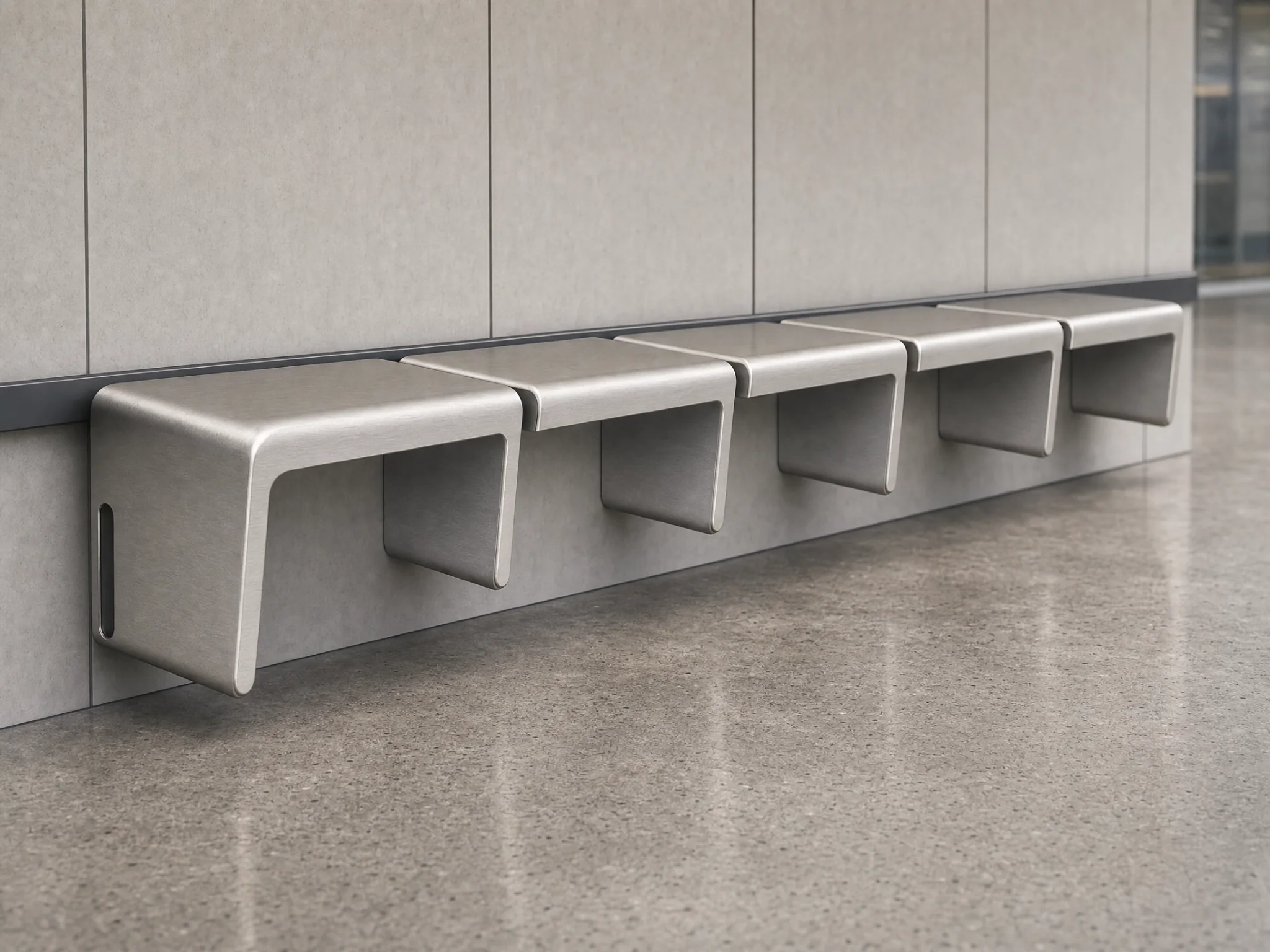

Wide angled studio-context view of Transit Pause Bench along a wall.
Continuous seating line using repeated folded modules.

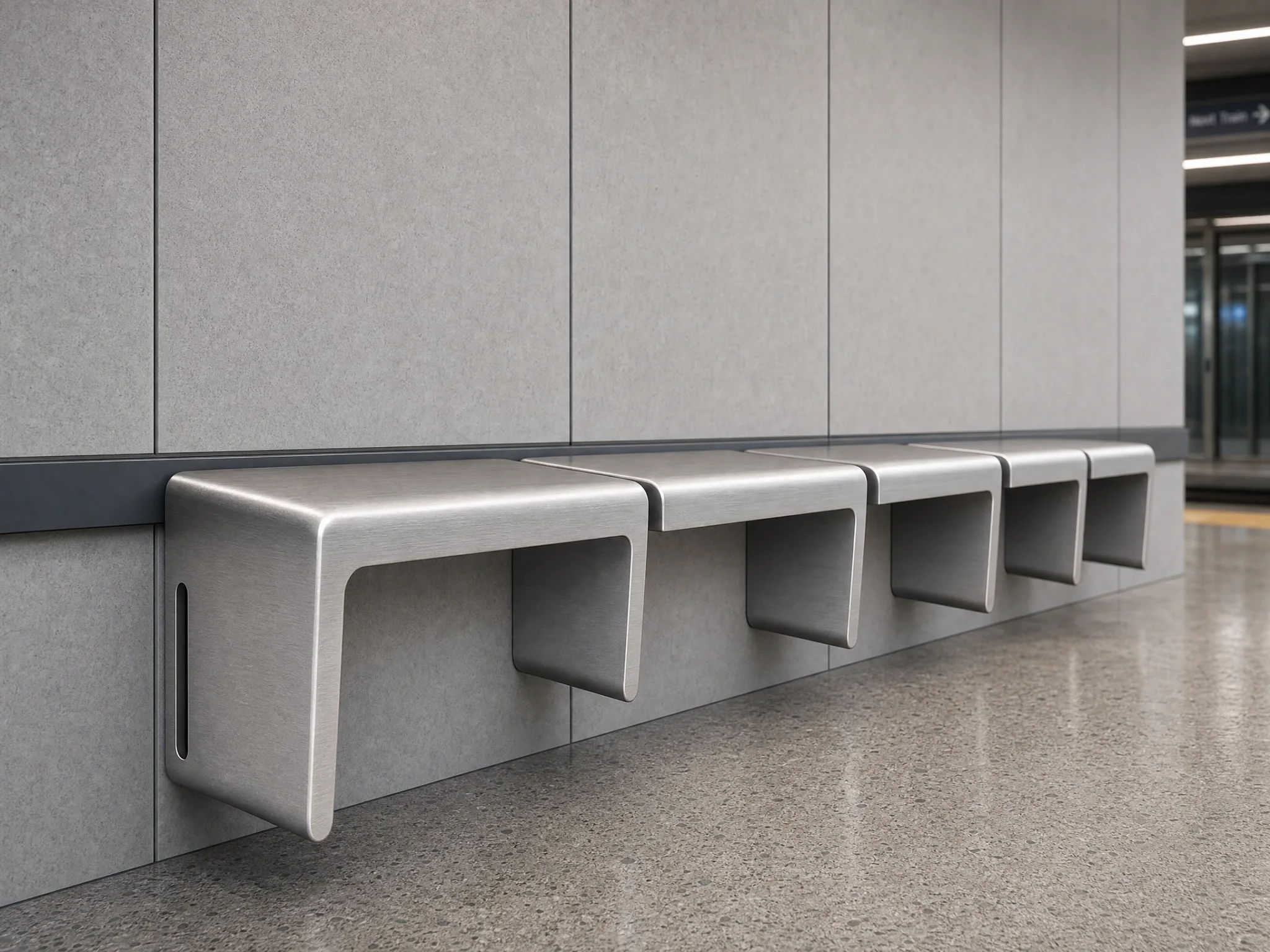

Angled close-up of several Transit Pause Bench modules installed along a wall.
Wall-aligned installation with open floor beneath.

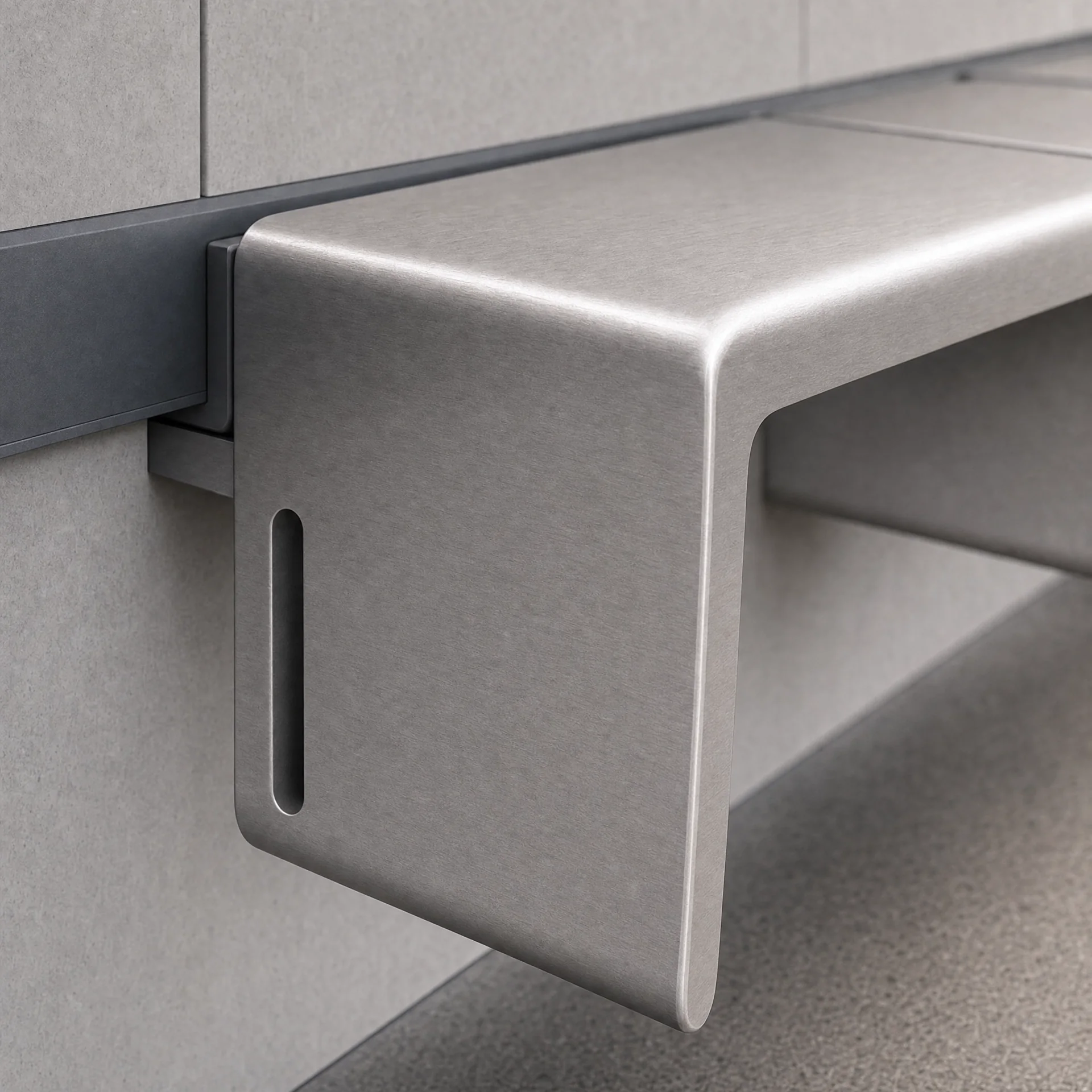

Close detail of Transit Pause Bench showing brushed metal surface and mounting logic.
Architectural detailing and durable material expression.
Family logic

From domestic threshold to public corridor, the family stays calm by reducing visual noise.

Folded Pause System is less about a single product and more about a repeatable way of thinking: pause as a design condition, folded structure as a formal strategy, and spatial calm as a shared outcome. Across all three concepts, the family remains compact, materially restrained, and behaviorally legible.
